Clase 6

Jueves 27 de julio de 2023

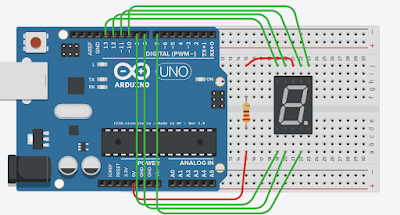

• Ejercicio 11: Contador de 0-9 (Simulador)

Código:

int medio = 13;

int ia = 12;

int a = 11;

int da = 10;

int iab = 9;

int ab = 8;

int dab = 7;

void setup() {

  pinMode(medio, OUTPUT);

  pinMode(ia, OUTPUT);

  pinMode(a, OUTPUT);

  pinMode(da, OUTPUT);

  pinMode(iab, OUTPUT);

  pinMode(ab, OUTPUT);

  pinMode(dab, OUTPUT);

}

void loop() {

  digitalWrite(medio, HIGH);   //0

  digitalWrite(ia, LOW);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, LOW);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);



 digitalWrite(medio, HIGH);   //1

  digitalWrite(ia, HIGH);

  digitalWrite(a, HIGH);

  digitalWrite(da, LOW);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, HIGH);

  digitalWrite(dab, LOW);

  delay(1000);



   digitalWrite(medio, LOW);   //2

  digitalWrite(ia, HIGH);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, LOW);

  digitalWrite(ab, LOW);

  digitalWrite(dab, HIGH);

  delay(1000);



   digitalWrite(medio, LOW);   //3

  digitalWrite(ia, HIGH);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);



   digitalWrite(medio, LOW);   //4

  digitalWrite(ia, LOW);

  digitalWrite(a, HIGH);

  digitalWrite(da, LOW);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, HIGH);

  digitalWrite(dab, LOW);

  delay(1000);



  digitalWrite(medio, LOW);   //5

  digitalWrite(ia, LOW);

  digitalWrite(a, LOW);

  digitalWrite(da, HIGH);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);





   digitalWrite(medio, LOW);   //6

  digitalWrite(ia, LOW);

  digitalWrite(a, LOW);

  digitalWrite(da, HIGH);

  digitalWrite(iab, LOW);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);









   digitalWrite(medio, HIGH);   //7

  digitalWrite(ia, HIGH);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, HIGH);

  digitalWrite(dab, LOW);

  delay(1000);





   digitalWrite(medio, LOW);   //8

  digitalWrite(ia, LOW);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, LOW);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);



   digitalWrite(medio, LOW);   //9

  digitalWrite(ia, LOW);

  digitalWrite(a, LOW);

  digitalWrite(da, LOW);

  digitalWrite(iab, HIGH);

  digitalWrite(ab, LOW);

  digitalWrite(dab, LOW);

  delay(1000);

}

• Ejercicio 11: Contador de 0-9 (Armado físicamente)

----------------------------------*************----------------------------------
